Configuration

🇬🇧 You are reading the English version | 🇩🇪 Deutsche Version

After the first start, the settings window opens – this is the central starting point for all configuration. It is recommended to keep the settings window open during operation (e.g. to quickly toggle the beacon on and off).

Important

: Always click "Save Settings" after any change! Settings are stored in ~/.praktikst/preferences.xml on Linux and in %USERPROFILE%\.praktikst\preferences.xml (or C:\Users\<Username>\.praktikst\preferences.xml) on Windows. From v1.21 onwards, window sizes and divider positions are also saved when you click Save.

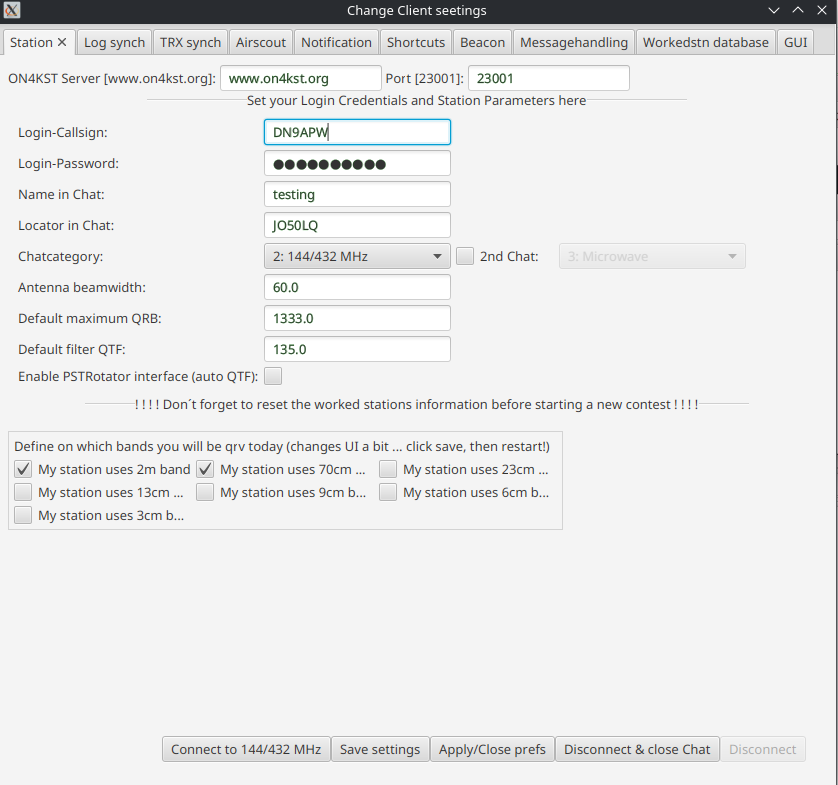

Station Settings

Enter your ON4KST chat credentials here (callsign and password). Also, select the primary chat category (e.g., IARU Region 1 VHF/Microwave).

With the option for a second chat (Multi-Channel Login), you can log in to another category simultaneously (e.g., UHF/SHF). Both chats will then be monitored in parallel. You can optionally specify a different login name for the second chat (useful for Opposite Station Multi-Callsign Logging).

Callsign and Locator

Enter your own callsign and Maidenhead locator (6 characters, e.g., JN49IJ). These values are needed for distance and direction calculations.

Active Bands

The My station uses … checkboxes define the bands available in the current local station setup. Supported choices are 50 MHz, 70 MHz, 144 MHz, 432 MHz, 1296 MHz, 2320 MHz, 3400 MHz, 5760 MHz and 10 GHz.

This selection controls more than the visible band columns. It is also used for:

the per-band Worked and NOT-QRV filters,
the NOT-QRV controls visible in the Further Info panel,
the a and B+ band-opportunity calculation,
the New bands filter,
the band-upgrade hint after a log entry, and
band-specific priority and Reachability functions.

After a change, click Save Settings and restart KST4Contest. Band columns and several related controls are created while the user interface is being built and are therefore not added or removed completely during the current session.

Antenna Beamwidth

Enter a realistic value for your antenna's beamwidth (in degrees). This value is used for the Sked Direction Highlighting. A test value of 50° has proven effective; DM5M uses quads with 69°.

Do not enter fantasy values – the direction calculations will become useless.

Default Maximum QRB

Maximum distance (in km) for which direction warnings should be triggered. A realistic value for DM5M is 900 km. Stations farther away are ignored for highlighting purposes.

Path Analysis and Link Budget

The station map uses several values from the Station tab to calculate the terrain profile and link budget for the selected remote station. Enter the local station data as realistically as possible. The remote-station values remain global assumptions unless more accurate information is available.

Setting	Use
Own antenna height AGL	Height of the local antenna above the surrounding terrain in metres
Own TX power W	Local transmit power in watts
Own ant. gain dBi	Gain of the local antenna in dBi
DX OM TX power W	Assumed transmit power of the remote station in watts
DX OM ant. gain dBi	Assumed antenna gain of the remote station in dBi

AGL means Above Ground Level. Do not enter the height above sea level. The terrain elevation at the local station already comes from the elevation profile; KST4Contest adds the configured antenna height to this value.

For the remote station, KST4Contest currently uses a fixed antenna height of 10 metres above the local terrain. Its transmit power and antenna gain come from the two DX OM fields. These values are deliberately assumptions: ON4KST provides neither the actual antenna height nor the complete station data of the remote operator.

Antenna gains must be entered in dBi. Add 2.15 dB before entering a value specified in dBd:

dBi = dBd + 2.15 dB

The current QTF, configured antenna beamwidth and default maximum QRB affect the map display. The bands enabled for the local station and the frequency derived for the remote station also affect the selection of the analysis frequency.

For the terrain profile, KST4Contest uses the antenna heights, elevation model and Earth curvature with a fixed effective Earth-radius factor of k = 4/3. The link budget additionally includes:

distance and the current analysis frequency,
transmit powers and antenna gains in both directions,
frequency-dependent estimated feeder losses,
free-space path loss, and
a rough additional loss caused by the relevant obstruction in the terrain profile.

The calculation is performed in both directions. The weaker direction determines the common SSB or CW margin. Optimistic power or antenna values therefore improve the displayed result, but they do not improve the real radio path.

The results remain engineering estimates. Current propagation conditions, local obstructions, vegetation, buildings, interference and unknown station parameters can change the actual result considerably. Operation, frequency selection and the limits of the calculation are described under Station Map and Path Analysis.

Server Settings (from v1.31)

The connection details for the ON4KST chat server are shown at the top of the Station tab. They normally do not need to be changed.

Setting	Meaning
ON4KST server	DNS name or IP address of the chat server; the software default is `www.on4kst.org`
Port	TCP port of the chat server; the default is `23001`

www.on4kst.info may also remain in an existing, working configuration. There is no reason to change it merely because the displayed name differs from the software default, provided that the chat connection remains reliable.

These values apply only to the outgoing ON4KST chat connection. They do not change the local DX cluster server or any connection to AirScout, PSTRotator or logging software.

The port must be between 1 and 65535. An invalid entry is rejected and replaced with the last valid value. An incorrect server name or port, on the other hand, prevents KST4Contest from connecting to the chat.

Changing either value does not alter an existing TCP connection. Disconnect and reconnect the chat, or restart KST4Contest. Then use Save Settings so that the values are retained for the next program start.

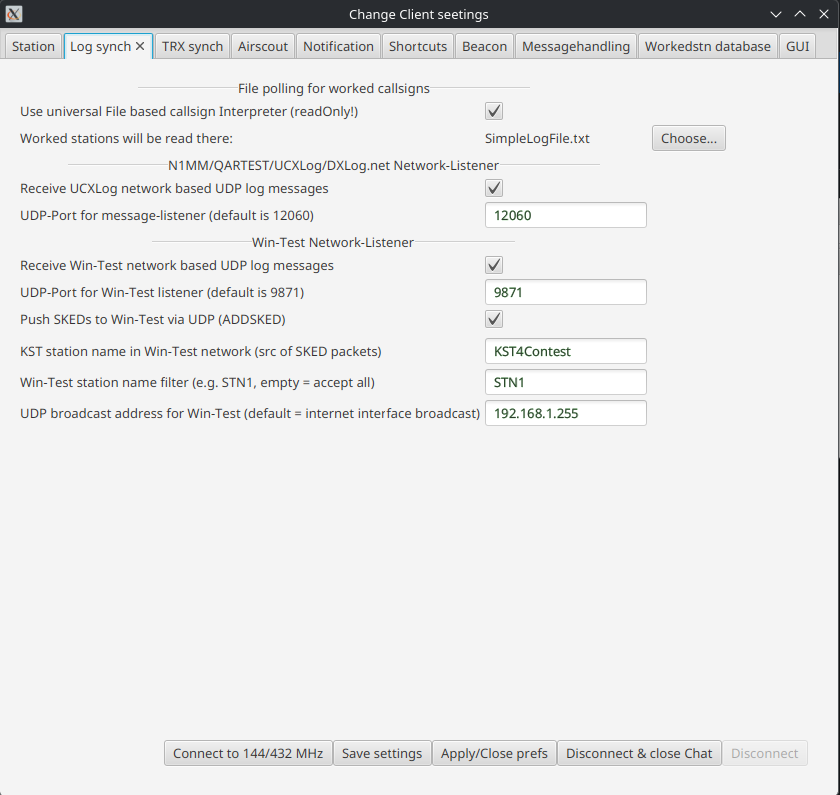

Log Sync Settings

The Log sync tab selects the sources from which KST4Contest imports worked stations. The three input paths provide different levels of detail:

Input path	Data used	Result in KST4Contest
Simplelogfile	Callsigns read from a selected file	global Worked status, but no band or locator information
General QSO UDP listener	QSO packets from UCXLog, QARTest, N1MM+ and DXLog.net	global and per-band Worked status plus worked grid square where both band and locator are transmitted
Win-Test network listener	native Win-Test network packets	global and per-band Worked status, locator information and, depending on the settings, QRG synchronisation and sked handover

The file-based interpreter is mainly useful when the logging application provides no supported network interface. A callsign match alone, however, contains neither a reliable band nor a locator. Use one of the network listeners wherever possible if per-band information is required.

The general QSO UDP listener is the recommended interface for UCXLog, QARTest, N1MM+ and DXLog.net. QSO and RadioInfo packets use the same configurable UDP port; the default is 12060. Separate options in Log sync and TRX sync determine whether the received QSO and frequency information is processed.

Win-Test uses its own network protocol and therefore has a separate listener. Its default port is 9871. If this port is changed while the listener is enabled, KST4Contest restarts the Win-Test listener on the new port. After changing the shared UDP port 12060, KST4Contest must instead be restarted completely.

All enabled input paths may be used in parallel. Their Worked information is merged into the same internal database; identical reports do not create separate Worked states. KST4Contest must be running when a QSO is saved unless the logging application can resend the existing log.

Configuration of the individual logging applications, band and locator handling, and the Win-Test sked handover are described under Log Synchronisation.

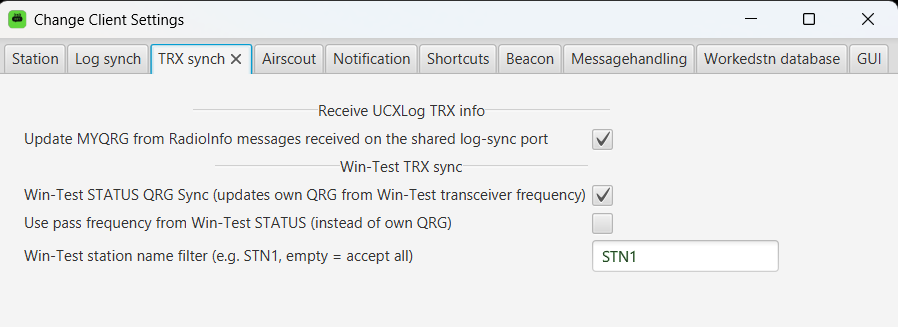

TRX Sync Settings

TRX synchronisation imports the current frequency from the logging application and makes it available in KST4Contest as the local QRG of the first chat category. QSO and frequency synchronisation may use the same UDP receiver, but they remain separate functions: receiving a RadioInfo packet does not mark a station as worked, and receiving a QSO packet does not automatically change the local QRG.

Available QRG Sources

Source	Setting	Behaviour
General RadioInfo listener	`Update MYQRG from RadioInfo messages received on the shared log-sync port`	Processes compatible `RadioInfo` packets on the UDP port shared with QSO synchronisation. The default port is `12060`.
Win-Test STATUS	`Win-Test STATUS QRG Sync`	Processes the main or pass frequency from native Win-Test `STATUS` packets. The Win-Test listener uses its separately configured port, which defaults to `9871`.
Manual entry	Disable both automatic QRG sources	The local QRG can be entered manually in the main window.

The general listener is intended for logging applications which transmit compatible RadioInfo packets. Depending on their individual configuration, this includes UCXLog, N1MM+, QARTest and DXLog.net. QSO and RadioInfo packets use the same port configured under Log sync, but separate options determine whether KST4Contest processes QSO information, TRX information or both packet types.

Restart KST4Contest after changing the shared UDP port. Changes to the two QRG-sync checkboxes take effect immediately.

Which QRG Is Updated?

Both automatic sources update MYQRG only. This is the local QRG of the first or primary chat category.

If a second chat is enabled, its QRG remains independent. It is not derived from incoming TRX packets and is available through SECONDQRG. The first category can therefore follow the logging application's frequency automatically while a separate QRG is entered manually for the second category.

As soon as at least one automatic QRG source is enabled, the first category's QRG field in the main window is bound to the received value. Manual entry becomes available again when both the general RadioInfo listener and Win-Test STATUS synchronisation are disabled.

Main or Pass Frequency from Win-Test

By default, KST4Contest uses the main frequency contained in the Win-Test STATUS packet.

Enable Use pass frequency from Win-Test STATUS to use the packet's pass frequency instead. This is useful, for example, when Win-Test maintains a different frequency during split operation and that is the frequency which should be announced in the chat.

If the packet does not contain a valid pass frequency, KST4Contest automatically falls back to the main frequency. A missing pass frequency therefore neither clears MYQRG nor replaces it with an obviously incorrect number.

Frequencies use a consistent KST4Contest display format, for example:

50.300.00
144.300.00
1296.100.00
10368.100.00

The number of digits before the first dot is derived from the frequency. Microwave frequencies with four or five MHz digits are therefore formatted correctly as well.

Selecting the Win-Test Station

Several stations in a Win-Test network may transmit STATUS packets at the same time. Win-Test station name filter selects the station which is allowed to update the local QRG in KST4Contest.

Example:

STN1

The comparison is case-insensitive. If the field is empty, STATUS packets from every Win-Test station are accepted.

In a multi-operator setup, set the filter to the station name of the operating position which actually belongs to this KST4Contest instance. Otherwise, a packet from another position may replace the QRG currently being displayed.

Using MYQRG and SECONDQRG

The synchronised QRG can be used in every text processed by the common KST4Contest variable resolver. This includes:

the send field,
shortcuts,
snippets, and
automatic beacons.

MYQRG contains the complete QRG of the first chat category. MYQRGSHORT uses only its first seven characters. SECONDQRG contains the separately entered QRG of the second chat category.

Examples:

I am calling cq at MYQRG
cq on MYQRGSHORT
second chat qrg SECONDQRG

The values are inserted when the message text is resolved. If the logging application changes frequency between two beacon runs, the next message already uses the updated value.

The local QRG may also be used as a fallback when handing a sked over to Win-Test. This only happens if the QRG can be parsed and belongs to the band explicitly selected for the sked. See Log Synchronisation for details.

Further information about text variables: Macros and Variables.

Multiple Loggers or Radios

Every enabled QRG source writes to the same MYQRG value. KST4Contest does not currently assign incoming RadioInfo or STATUS packets to a particular radio or chat category.

If the general RadioInfo listener and Win-Test synchronisation are enabled at the same time, the most recently processed packet therefore determines the displayed QRG. The same applies when several logging applications send frequency packets to one KST4Contest instance.

For a setup containing several radios:

QSO packets may be received from several logging applications.
Frequency packets should only be transmitted by the source which is intended to control MYQRG.
A Win-Test network should additionally use the station-name filter.
If two completely independent QRG synchronisations are required, two separate KST4Contest instances provide the clearer arrangement.

In other words, combining several Worked sources is useful. Combining several simultaneously transmitting frequency sources merely creates a contest over which packet arrived last.

Click Save Settings after completing the configuration.

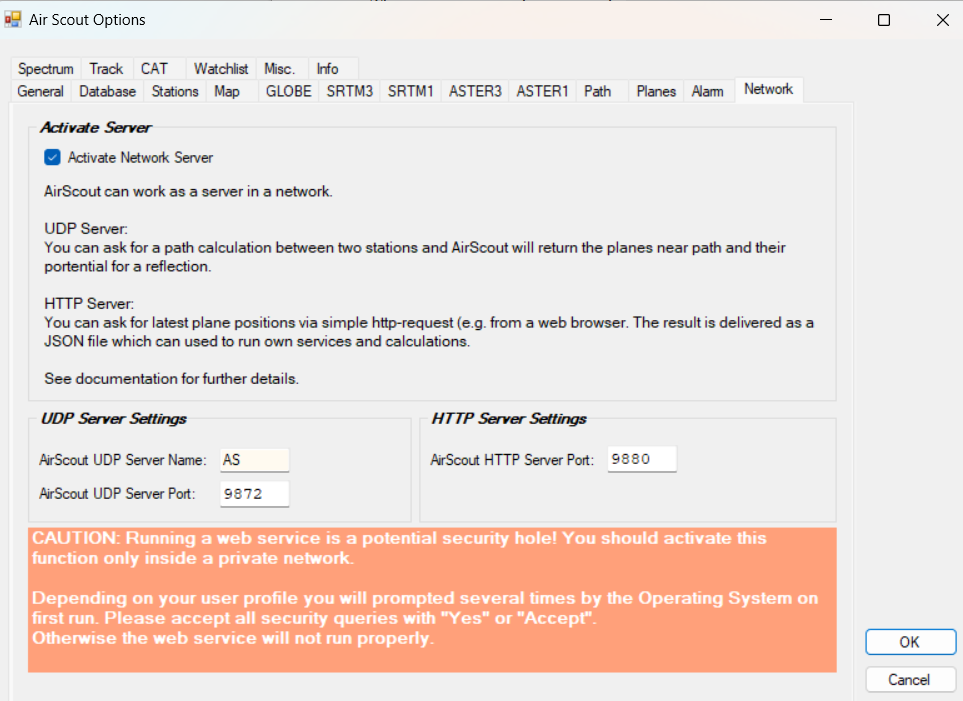

AirScout Settings

The AirScout tab configures the UDP connection between KST4Contest and AirScout. KST4Contest does not request a general aircraft feed. It submits the station paths which are currently relevant, while AirScout calculates the matching aircraft and returns the result to the requesting KST4Contest instance.

AirScout 0.9.9.5 or newer is required.

{ width=85% }

UDP Connection Settings

Setting	Default	Use
Enable AirScout UDP integration	disabled	Enables AirScout requests and the processing of returned information
AirScout server identifier	`AS`	Logical name of the AirScout instance being addressed
KST4Contest client identifier	`KST`	Logical name of this KST4Contest instance
AirScout UDP port	`9872`	Shared UDP port for requests and responses
Select AirScout frequency automatically per station	enabled	Derives a suitable band and frequency from the current context of each remote station
Forced AirScout band value	`1440000`	Uses one fixed AirScout band value for every station when automatic selection is disabled

When Enable AirScout UDP integration is disabled, KST4Contest neither sends AirScout requests nor processes incoming AirScout responses. The UDP receiver may remain bound so that the integration can be enabled again during the current connection.

KST4Contest sends AirScout packets to the broadcast address 255.255.255.255. No separate destination IP address is therefore configured. AirScout and KST4Contest must be able to receive the same UDP broadcast; routers do not normally forward this type of broadcast into another network. If communication fails, check the UDP port, local firewall and network assignment first.

Automatic Band Selection per Station

Auto per station is the recommended setting. Instead of using one fixed band value for every remote station, KST4Contest derives a suitable frequency from the available operating context.

The sources are evaluated in this order:

the most recently detected QRG of the remote station, provided that it is no more than 30 minutes old,
one unambiguous complete QRG in the name field of an active chat entry,
unambiguous band designators in the name field,
432 MHz if the same station is active in both the VHF/UHF and Microwave categories and 432 MHz is enabled for the local station,
the lowest locally enabled band belonging to the supported chat category.

Active chat variants of the same base callsign are evaluated together. Entries such as CALLSIGN, CALLSIGN-2 and CALLSIGN-432 can therefore contribute to the same band decision while remaining separate chat members for message processing.

Only bands enabled under My station uses … are eligible for automatic selection. A manually assigned NOT-QRV mark excludes the corresponding band and takes precedence over automatically detected QRG or name information.

The 50/70 MHz, VHF/UHF, Microwave and EME/JT65 chat categories are supported. Other ON4KST categories do not participate in AirScout band resolution. If no sufficiently reliable frequency can be determined, KST4Contest omits the request for that station. An arbitrary fallback to 144 MHz would produce a syntactically complete packet, but not necessarily a useful calculation.

Automatic AirScout selection uses the same propagation-frequency resolver as the internal path analysis. Both functions therefore evaluate the station path from the same technical basis.

Fixed AirScout Band

When Auto per station is disabled, KST4Contest uses the value entered under Forced AirScout band value for every station.

Enter the value in the unit used by the AirScout UDP interface:

Band	AirScout value
50 MHz	`500000`
70 MHz	`700000`
144 MHz	`1440000`
432 MHz	`4320000`
1296 MHz	`12960000`
2320 MHz	`23200000`
3400 MHz	`34000000`
5760 MHz	`57600000`
10368 MHz	`103680000`
24048 MHz	`240480000`

In fixed mode, neither the remote station's recently detected QRG nor a band stated in its name is considered. This option is therefore mainly useful for a station setup which is clearly limited to one band, or for troubleshooting.

Server and Client Identifiers

The identifiers belong to the AirScout protocol. They are not DNS names or IP addresses.

Outgoing requests contain the client identifier followed by the server identifier:

"KST" "AS"

AirScout returns them in the opposite order:

"AS" "KST"

KST4Contest processes a response only if both identifiers exactly match the current configuration. The comparison is case-sensitive.

Identifiers must not be empty and must not contain quotation marks or line breaks.

If several KST4Contest instances operate in the same network, assign a distinct client identifier to each one, for example:

KST-144
KST-432

If several AirScout instances are present, use distinct server identifiers as well. This prevents a response intended for one operating position from being processed by another KST4Contest instance.

Which Stations Are Requested?

KST4Contest starts the first periodical AirScout request approximately ten seconds after the chat connection has been established. Further requests follow every 60 seconds.

An active station is included only if:

a usable callsign is available,
a locator is available,
its distance has been calculated,
its distance is below the configured Maximum QRB, and
a usable band can be determined.

Several active chat entries of the same base callsign do not create a separate identical path calculation for every suffix. The returned AirScout information is subsequently assigned to the corresponding active chat variants.

This selection does more than reduce network traffic. It also prevents AirScout from continuously calculating paths outside the intended working range of the local station.

Applying Changed Settings

The following changes are used for new packets immediately after leaving the input field or changing the checkbox:

enabling or disabling the AirScout integration,
server identifier,
client identifier,
automatic or fixed band selection, and
the forced band value.

After changing the UDP port, disconnect and reconnect the chat or restart KST4Contest. The existing UDP receiver otherwise remains bound to the previous port.

Click Save Settings afterwards to retain the configuration.

AirScout setup, aircraft display and the meaning of the returned AP information are described under AirScout Integration.

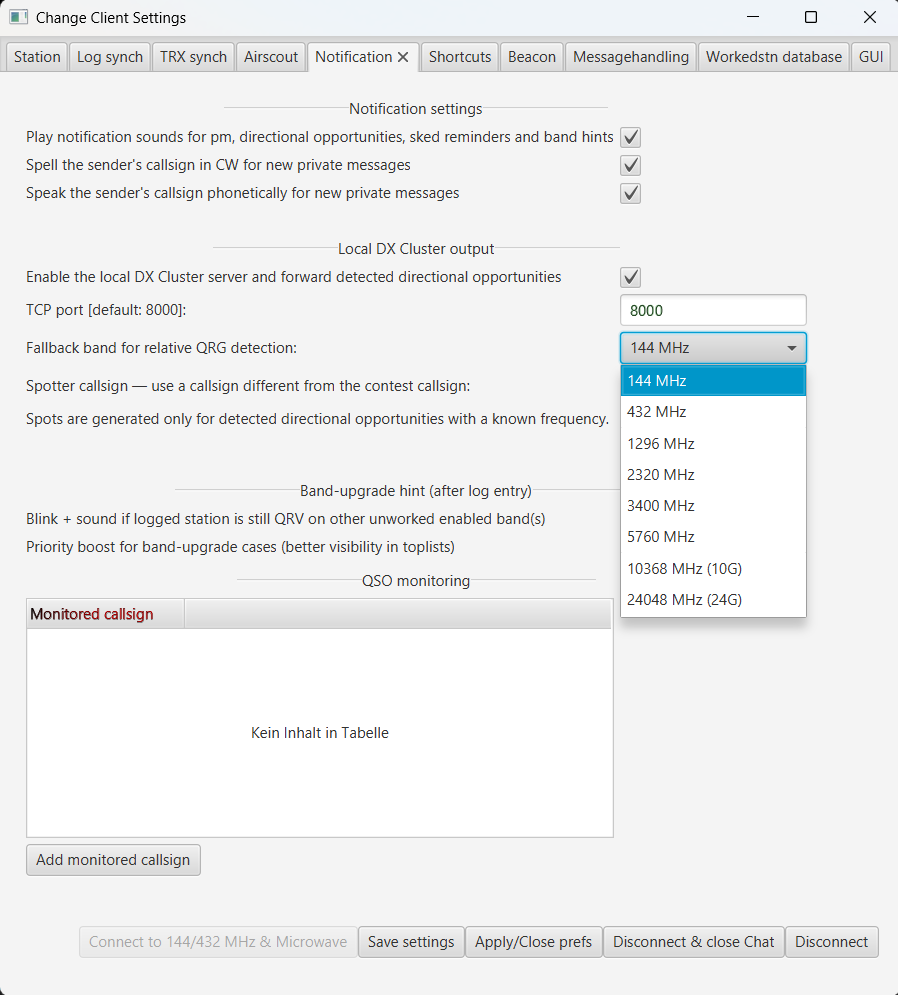

Notification Settings

Three notification types are available:

Simple sounds: TADA sound for incoming messages, tick for sked direction detection, etc.
CW announcement: The callsign of a station sending a private message is output as a CW signal.
Phonetic announcement: The callsign is pronounced phonetically.

Fallback Band for Relative QRG Detection

The Fallback band for relative QRG detection dropdown selects the band used when a relative QRG cannot be assigned to a recent station-specific band context.

Only band prefixes supported by the frequency parser are available:

50 MHz
70 MHz
144 MHz
432 MHz
1296 MHz
2320 MHz
3400 MHz
5760 MHz
10368 MHz (10G)
24048 MHz (24G)

The dropdown is neither a filter nor an override for complete frequencies. 432.088 is recognised as a frequency in the 432 MHz band regardless of the selection. The fallback is needed for relative values such as .205, ,205 or qrg 205.

Before using the fallback, KST4Contest checks the sender's recent band context. If a complete frequency has been detected for the same station during the previous 30 minutes, that band takes precedence. A fallback setting of 144 MHz therefore still turns .100 into 432.100 MHz if the station mentioned 432.088 shortly before.

Although this setting is located in the Notification tab, it affects the general QRG parser. It therefore influences the QRG column, detected active bands, priority calculations, band-upgrade hints and other functions which use a known station frequency – not only DX cluster spots.

Further details, including numbers which are deliberately ignored, are described under QRG Detection.

Local DX Cluster Output

KST4Contest can forward detected directional opportunities to logging software as DX cluster spots. A frequency recognised in the chat can therefore appear directly in the logger's band map without being entered manually.

The Enable the local DX Cluster server … checkbox starts or stops the local TCP server. When KST4Contest is connected to the chat, the change takes effect immediately.

The following settings and controls belong to the local DX cluster output:

TCP port: Port on which KST4Contest accepts connections from DX cluster clients. The default is 8000. Changing the port while the server is running restarts it on the new port. The logger must then reconnect to that port.
Fallback band for relative QRG detection: The global fallback band described above. The test spot uses .300 on this band. Actual spots use the QRG detected for the respective sender.
Spotter callsign: Callsign shown as the spotter in generated DX cluster entries. A callsign different from the contest callsign should be used. Some logging programs filter spots apparently sent by the local station or treat them differently from external spots.
Send test spot: Sends the following entry to every currently connected DX cluster client:

Spotted callsign: DO5AMF
Comment: Testing DXC-Spot: Congrats, you donated $100!
Frequency: .300 on the selected fallback band

With 144 MHz selected as the fallback band, the resulting frequency is approximately 144.300 MHz.

The comment is a deliberately retained Easter egg. It has no technical meaning and, despite being remarkably specific, does not initiate a payment. Its practical purpose is to make the test spot easy to identify in the logging software.

The test works only if

KST4Contest is connected to the ON4KST chat,
the local DX cluster server is enabled, and
at least one DX cluster client is connected to KST4Contest.

KST4Contest does not generate a spot for every frequency found in the chat. An actual spot is created only when a directed message between two stations indicates a relevant antenna direction for the local station and a usable frequency is known for the sender.

The complete derivation and logger setup are described under Built-in DX Cluster Server.

Band Upgrade Hint after a Log Entry

After receiving a log entry from UCXLog or Win-Test, KST4Contest can check whether the station which has just been worked still offers another common and unworked band.

The check uses the same derivation as the a and B+ display:

the bands enabled in the local station settings,
QRGs detected for the remote station during the previous 30 minutes,
explicit band designators in the name fields of its active chat entries,
stored per-band Worked marks, and
manually assigned NOT-QRV marks.

Active chat variants of the same normalised callsign are evaluated together. NOT-QRV takes precedence over an automatically detected QRG or band designator.

If at least one common and unworked band remains, the main window displays a blinking BAND+ hint for approximately twelve seconds. The callsign and remaining bands are included in the button text; the tooltip contains the complete derivation. If general notification sounds are enabled, KST4Contest also plays a short sound.

The two options serve different purposes:

Blink + sound … enables the hint after a matching log entry.
Priority boost … additionally raises the score of stations which have already been worked on at least one band but still offer another common and unworked band.

The Priority Boost is only one factor in the complete calculation. Distance, antenna direction, recent activity, AirScout data, skeds and negative hints may still change the final order. Enabling the option therefore guarantees neither a particular score nor a particular position in the priority list.

The other score weights currently have no separate user-interface controls. Several existing settings nevertheless provide input data for the calculation, particularly the active bands, antenna beamwidth, default maximum QRB and AirScout settings.

The complete calculation is described under Priority Score and Priority List.

The hint requires a log-synchronisation source which provides band information. The file-based callsign interpreter sees callsigns only and cannot reliably identify the band of the QSO which has just been logged.

Further explanation: Band Upgrade Hint after a Log Entry.

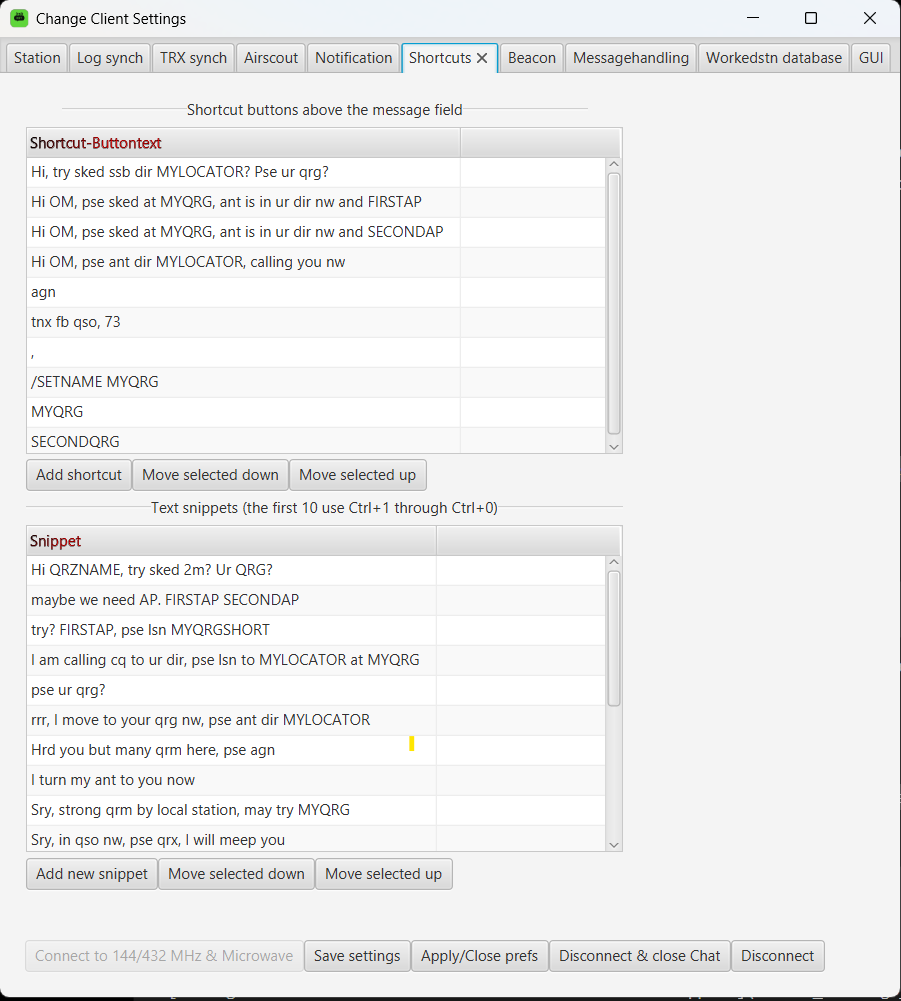

Shortcut Settings

Each entry in the upper part of the Shortcuts tab creates one button above the message field in the main window. Pressing the button appends its configured text to the current contents of the send field.

If the shortcut contains a variable, it is replaced with its current value when the text is inserted. A shortcut such as

pse call me at MYQRGSHORT

may therefore insert:

pse call me at 144.388

The exact entries MYQRG and SECONDQRG are additionally highlighted as QRG buttons. They insert the current frequency of the primary or secondary chat category respectively.

The order of the table determines the order of the buttons in the main window. Manage the entries as follows:

Add shortcut creates a new entry at the beginning of the list and immediately opens it for editing.
Double-click an existing entry to edit it. Press Enter to accept the change.
To remove an entry, delete its complete contents and confirm with Enter.
Use Move selected up and Move selected down to change the position of the selected entry.

Changes appear in the main window immediately. Use Save Settings afterwards if they should remain available after the next program start.

Snippet Settings

Snippets are longer text blocks intended primarily for messages to a selected station. They can be opened through:

a right-click on a station in the user list;
a right-click on a message in the public chat table;
a right-click on a message in the PM table; or
Ctrl+1 through Ctrl+0 for the first ten entries in the snippet list.

The keyboard mapping follows the order of the table:

Key combination	Snippet
`Ctrl+1`	first entry
`Ctrl+2`	second entry
…	…
`Ctrl+9`	ninth entry
`Ctrl+0`	tenth entry

A snippet selected from a context menu is appended to the message already prepared in the send field. Selecting a station or message will normally have inserted the appropriate /cq destination first.

A keyboard shortcut behaves differently: it replaces the current contents of the send field with a complete directed message:

/cq CALLSIGN snippet text

The complete visible callsign, including any suffix, is retained. Selecting 9A0BB-70 may therefore produce:

/cq 9A0BB-70 pse ur qrg?

The selected station's chat category is retained for transmission. If no station is selected, or no snippet is assigned to the chosen key combination, nothing is inserted.

Variables are resolved when the snippet is inserted. Station-specific variables such as QRZNAME, FIRSTAP and SECONDAP refer to the currently selected station. The prepared message is not sent automatically and can still be checked or edited. Press Enter or TX to send it; Esc clears the send field.

The snippet list is edited in the same way as the shortcut list:

Add new snippet creates a new entry at the beginning of the list.
Double-click an existing entry to edit it.
Press Enter to accept the change.
Confirming an empty entry removes it.
Move selected up and Move selected down change both the displayed order and the assignment to Ctrl+1 through Ctrl+0.

The context menus and keyboard mappings are updated immediately. Use Save Settings afterwards to store the modified list permanently.

The complete list of available placeholders and their limitations is described under Macros and Variables.

Beacon Settings

A beacon sends a public CQ message at regular intervals. It is intended for operating situations in which the local station calls CQ on a fixed frequency for an extended period. Other stations receive current QRG information without requiring the operator to enter the same message repeatedly.

KST4Contest uses one shared timer for both chat categories. Each category nevertheless has its own enable setting and message template:

Enable CQ beacon enables the beacon for the respective category.
Beacon message contains the public message for that category.
Shared beacon interval sets the common interval used by both categories.

When both beacons are enabled, they are sent one after the other in their respective categories during the same timer run. The second beacon is only considered while the second chat is enabled and connected.

Interval and timer behaviour

The interval is entered in whole minutes. The minimum permitted value is one minute.

After the chat connection has been established, KST4Contest performs the first beacon check after approximately ten seconds. The configured interval applies after that initial check.

Changing the interval while connected restarts the countdown with the new value. The change itself does not cause an immediate beacon message.

Both categories use the same timer. Separate intervals for the primary and secondary chat cannot be configured.

Message text and variables

A beacon may use the global variables which depend only on the local station:

MYQRG
MYQRGSHORT
SECONDQRG
MYLOCATOR
MYLOCATORSHORT
MYCALL
MYQTF

A suitable message for the primary chat category is:

calling cq at MYQRGSHORT, ant MYQTF deg, loc MYLOCATOR

Use SECONDQRG for the second chat if it operates on a different frequency:

calling cq at SECONDQRG, ant MYQTF deg, loc MYLOCATOR

Variables are resolved again on every timer run. If the logging software changes the QRG stored in MYQRG, the next beacon can already contain the updated value. The message template does not have to be edited.

MYQRG and MYQRGSHORT always refer to the primary chat category. Enabling or selecting the second chat does not change this assignment.

Station-specific variables such as QRZNAME, FIRSTAP and SECONDAP require a selected remote station. A public beacon has no such destination, so these variables are not resolved in beacon messages.

Message validation

KST4Contest validates both the configured template and the message which remains after all variables have been resolved.

The following restrictions apply:

The final message must not be empty.
It must not exceed 120 characters.
The protocol separator | is not permitted.
Line breaks are not permitted.

An invalid entry is not accepted as the new beacon configuration. If a template becomes invalid only after resolving its variables, for example because the resulting text exceeds 120 characters, that beacon run is skipped.

A template which consists only of a temporarily empty global variable may still be stored. This can happen during startup before the first QRG has been received from the logger. KST4Contest does not send an empty message while the variable has no usable value.

When should the beacon be disabled?

The beacon is useful only while its QRG matches the actual operation. Leaving it enabled while searching the band or changing frequencies frequently may cause other stations to look for the local station on an obsolete frequency.

In plain terms: the beacon saves work while calling CQ on a fixed QRG. It should be disabled while moving around the band.

Changes take effect during the current connection. Use Save Settings afterwards to retain the enable settings, message templates and interval for the next program start.

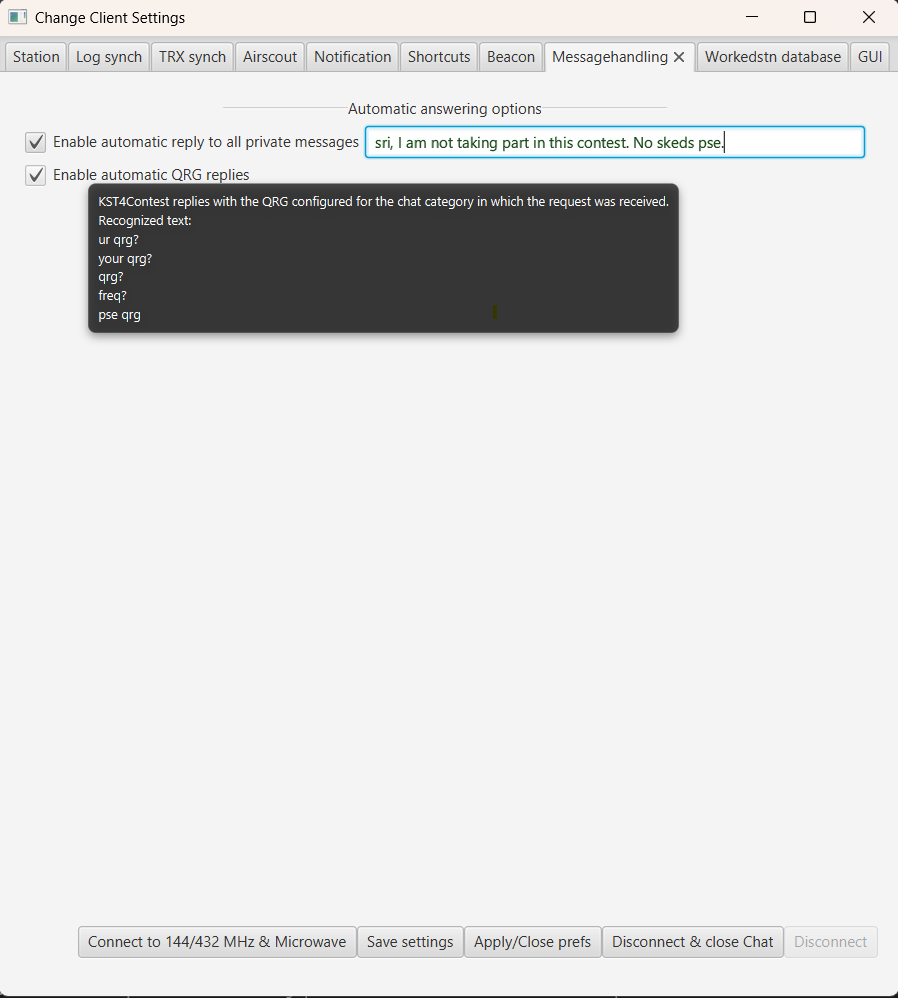

Messagehandling Settings (from v1.25)

The most important use of the general automatic reply concerns stations which are logged into the ON4KST chat but are not taking part in the current contest. During larger contests, sked requests are sometimes sent to many logged-in stations without first checking whether they are participating. Without an automatic reply, the recipients would have to enter the same refusal repeatedly.

KST4Contest can answer these requests with a predefined message. A separate function provides the local QRG when a private message contains a recognised frequency request. Both functions can be enabled independently.

General automatic reply

Enable automatic reply to all private messages answers incoming private messages with the text entered in the adjacent field. One common text is used for both chat categories. The configured capitalisation is preserved.

A suitable message is:

Sri, I am not taking part in this contest. No skeds.

Do not add the [KST4C Automsg] prefix to the configured text. KST4Contest inserts it automatically.

The message received by the remote station may therefore be:

[KST4C Automsg] Sri, I am not taking part in this contest. No skeds.

The incoming private message remains visible. The function neither blocks nor discards the request; it merely avoids entering the same answer repeatedly.

The reply is addressed to the sender's complete callsign, including any visible suffix, and sent through the chat category in which the private message was received. This distinction matters when two categories are connected at the same time: a request received through the microwave chat must not be answered accidentally through the VHF/UHF chat.

An empty or whitespace-only answer does not produce an automatic message. A configured text containing the protocol separator | or a line break is rejected as well.

Automatic QRG reply

Enable automatic QRG replies reacts to common QRG requests. Matching is case-insensitive and looks for the following text fragments:

ur qrg?
your qrg?
qrg?
freq?
pse qrg

The answer contains only the QRG belonging to the category in which the request was received:

Incoming private message	QRG used for the reply
Primary category	current QRG of the primary category
Second chat category	current QRG of the second category

A possible reply is:

[KST4C Automsg] QRG is: 144.300.00

The values come from the same QRG fields used by MYQRG and SECONDQRG. The primary QRG may be entered manually or updated through TRX synchronisation. The second category uses the value configured or entered for that category.

If no QRG is available for the incoming category, KST4Contest does not send an incomplete reply. A message containing QRG is: without a frequency would technically answer the request while providing no useful information. It is therefore rejected before reaching the transmit queue.

When both automatic-reply functions are enabled, the QRG reply takes precedence. A recognised QRG request does not additionally produce the general reply. If the required QRG is missing, KST4Contest does not fall back to the general answer.

Protection against repeated replies

Every automatically generated reply contains the fixed prefix:

[KST4C Automsg]

The general and QRG-specific functions ignore messages which already contain this prefix. This prevents two clients with automatic replies enabled from answering each other indefinitely.

A common two-minute cooldown additionally applies to both reply types. The cooldown is tracked separately for each complete callsign and chat category.

This means:

CALLSIGN-2 and CALLSIGN-70 have separate cooldowns.
The same complete callsign can still receive an independent reply in another chat category.
A general reply also suppresses a QRG reply to the same callsign in the same category for two minutes.
A QRG reply likewise suppresses the general reply.

The cooldown starts only after KST4Contest has produced a complete, locally valid message and placed it in the transmit queue. A missing QRG, an empty general reply or a message rejected because of invalid characters does not start the cooldown. Once the missing information has been corrected, a valid reply can therefore be generated immediately.

Note

: The configured text should describe the actual operating status clearly. If the station is only observing the contest and does not accept skeds, say exactly that. A vague automatic message is likely to produce another question – which is precisely the work this function is intended to avoid.

Changes take effect during the current connection. Use Save Settings afterwards to retain the enable settings and general reply text for the next program start.

Further background: Automatic Replies to Private Messages.

Win-Test Network Listener (from v1.31)

The Win-Test network listener processes the native Win-Test UDP protocol. It is independent of the general QSO UDP listener on port 12060 and has three separate tasks:

processing QSOs including band and locator information,
processing STATUS packets for the local QRG, and
handing skeds over to the Win-Test network.

Log sync settings

Setting	Function
Receive Win-Test network based UDP log messages	Enables the Win-Test network listener. When the listener is enabled, pressing Create sked also attempts the Win-Test handover.
UDP-Port for Win-Test listener	Port used by the Win-Test network. The default is `9871`. The same port is used for the sked handover.
KST station name in Win-Test network (src of SKED packets)	Station name used by KST4Contest when sending sked packets. A unique name should be used in a network containing several clients.
Win-Test network broadcast address	Destination address for outgoing Win-Test network packets. In a local network, the address must be reachable by the Win-Test computer.

The broadcast address is configurable because 255.255.255.255 is not forwarded reliably through every station network or network interface. In a multi-computer setup, the directed broadcast address belonging to the station network may be required instead.

TRX sync settings

Setting	Function
Win-Test STATUS QRG Sync	Takes the current frequency from Win-Test STATUS packets and uses it as the local QRG.
Use pass frequency from Win-Test STATUS	Uses the transmitted pass frequency instead of the normal TRX QRG.
Win-Test station name filter	Only processes STATUS packets from the specified Win-Test station. An empty field accepts every station name.

The station filter is particularly useful when several Win-Test clients are active. Without a filter, the most recently received STATUS packet from another operating position can overwrite the local QRG in KST4Contest.

Sked handover

There is no separate internal sked mode for the Win-Test handover. When the listener is enabled, Create sked attempts the Win-Test transfer in addition to creating the internal sked.

KST4Contest only sends an ADDSKED packet when it can determine a QRG which belongs to the explicitly selected band. If no matching QRG is available, the internal sked remains intact and the Win-Test handover is omitted.

SSB or CW is selected directly in the Further Info section when the sked is created. No automatic mode inference is used.

Click Save Settings after making changes so that the port, station name, broadcast address and TRX options are restored at the next start.

Data handling and QRG selection: Log Synchronisation – Win-Test

PSTRotator Settings (from v1.31)## PSTRotator Settings (from v1.31, fully configurable from v1.40)

KST4Contest can set an antenna direction through the PSTRotator UDP interface and use the current position reported by PSTRotator as the local QTF.

The settings are located in the Station tab:

Setting	Default	Purpose
Enable PSTRotator	disabled	Starts UDP communication with PSTRotator
PSTRotator host	`127.0.0.1`	Hostname or IP address of the computer running PSTRotator
PSTRotator UDP port	`12000`	UDP port on which PSTRotator receives control commands

When both applications run on the same computer, 127.0.0.1 is normally the clearest setting. If PSTRotator runs on another computer in the station network, enter its reachable IP address or DNS name.

The port must be between 1 and 65534. Port 65535 cannot be used because PSTRotator reports its position on the following port.

Preparing PSTRotator

Configure the same UDP port under Communication → UDP Control Port in PSTRotator and enable UDP Control.

The default configuration uses the following pair:

Direction	UDP port
KST4Contest → PSTRotator	`12000`
PSTRotator → KST4Contest	`12001`

KST4Contest binds the return port automatically. It is not configured separately.

When the programs run on different computers, the local firewalls and station network must permit UDP traffic in both directions. KST4Contest cannot receive position reports if another program already occupies the return port.

The complete UDP protocol is documented in the PSTRotatorAz User Manual.

Updating the local QTF

KST4Contest asks PSTRotator for the current azimuth and operating mode every two seconds. The reported azimuth becomes actualQTF.

While PSTRotator integration is enabled, the QTF field in the main window is therefore read-only. It displays the most recent position reported by PSTRotator.

This QTF is used by:

the direction filter;
the derivation of direction opportunities;
the Priority Score;
the antenna sector on the station map;
the AP and sked timeline; and
the MYQTF variable.

A received rotator position is therefore more than a displayed value. It changes several functions which depend on the current antenna direction.

The current integration uses azimuth only. Elevation control and complete azimuth/elevation tracking are outside its present scope.

Applying changed settings

The enable setting, host and port are evaluated when the rotator connection is started. After changing them, disconnect and reconnect the ON4KST session or restart KST4Contest.

Use Save Settings afterwards so that the values are restored at the next program start.

Sniffer Settings (from v1.31)

The QSO sniffer filters chat messages from configurable callsigns and forwards them to the PM window.

Settings:

Callsign list: Comma-separated list of callsigns whose messages are always forwarded to the PM window.

Use case: Keep track of important stations (e.g. DX expeditions or trusted contest allies) without constantly monitoring the main chat.

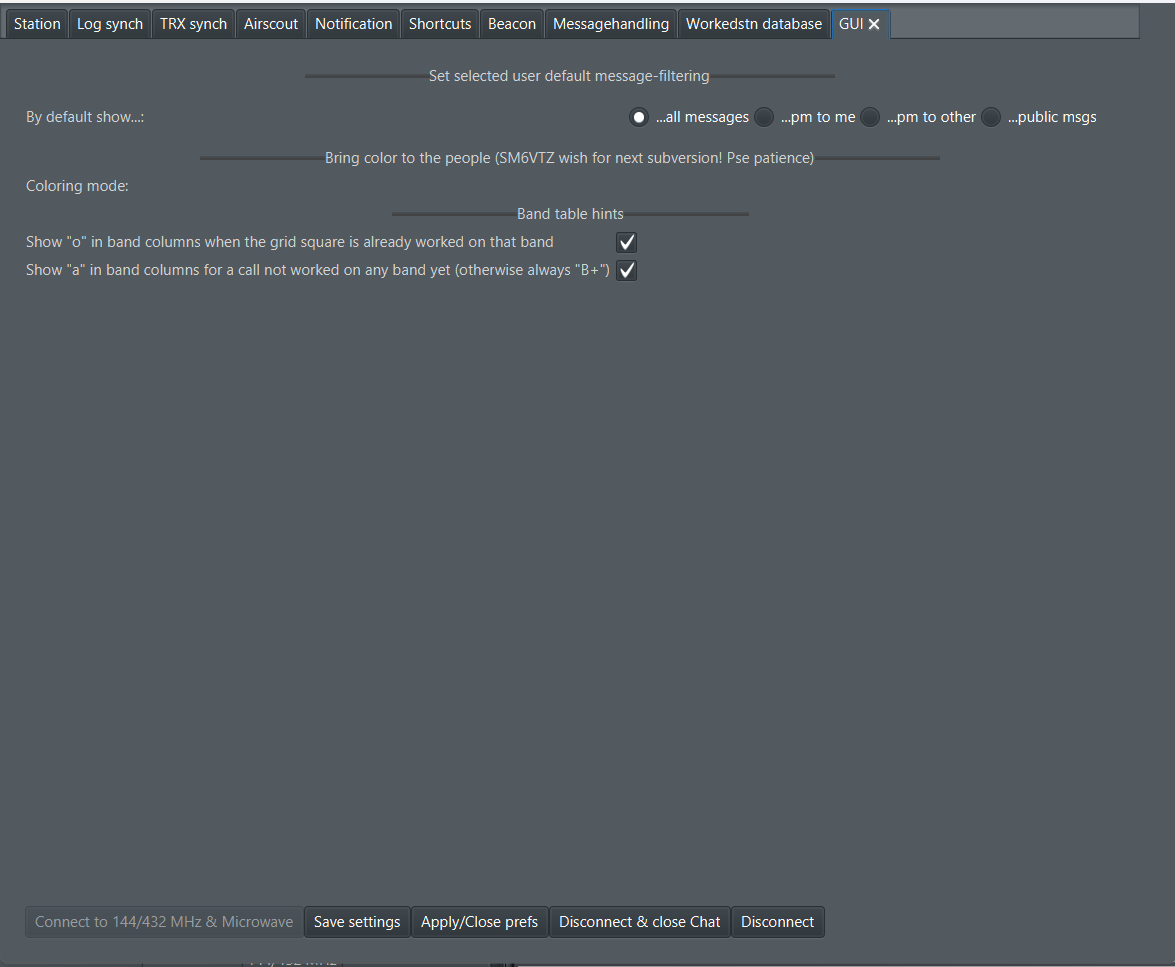

GUI Settings: Band-Column Hints

Two optional additions to the band columns can be enabled or disabled in the GUI tab:

Show "o" in band columns … displays an o if the four-character grid square has already been worked on the relevant band. Disabling the option does not delete any database records; it only hides the additional indicator in the band columns. wkdany is unaffected.
Show "a" in band columns … distinguishes a completely new callsign from a band opportunity involving a callsign already worked elsewhere. When disabled, both cases are displayed as B+. The band-opportunity calculation itself remains unchanged.

Changes are reflected in the current user interface immediately. Click Save Settings afterwards if they should persist after the next start.

Worked Station Database Settings

The internal SQLite database stores contest-related state independently of the logging application's database:

the global Worked status of a callsign,
Worked status per band,
manually assigned NOT-QRV marks per band, and
worked four-character grid squares per band.

The normalised callsign, without visible chat brackets or category formatting, is used as the key. This allows active variants of the same callsign to be evaluated consistently.

Worked and NOT-QRV information expires automatically three days after its most recent change. Stored grid squares expire three days after the corresponding log entry. A manual reset before every contest is therefore normally unnecessary.

The Reset worked, NOT-QRV and grid data... button removes every Worked mark, NOT-QRV mark and stored worked grid square. A confirmation dialog is displayed first. Known callsign rows remain in the database; only the contest-related state is reset.

A reset is useful when you deliberately want to start with an empty contest state or have imported test data. It is not intended as a daily maintenance step.

Display and derivation: Worked Callsigns, New Bands and New Grid Squares.

Dark Mode (from v1.26)

Toggle via the menu: Window → Use Dark Mode. The colors can be individually customized via CSS.

Saving Settings

Click "Save Settings" after every change! Without saving, all changes will be lost on the next start.

Storage location: ~/.praktikst/preferences.xml on Linux and %USERPROFILE%\.praktikst\preferences.xml (or C:\Users\<Username>\.praktikst\preferences.xml) on Windows
From v1.21: Window sizes and divider positions are also saved.
If you encounter problems: delete the configuration file → KST4Contest will create a new one with default values.

49 KiB Raw Blame History Unescape Escape
